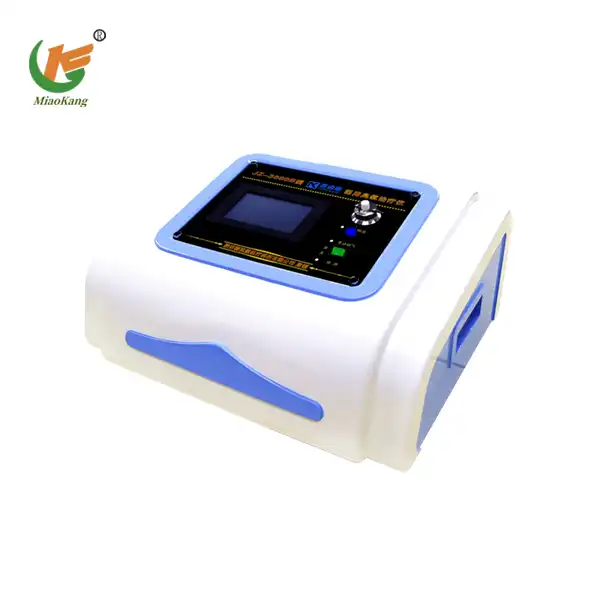

Ozone Therapy Machine JZ-3000: Revolutionizing Medical Treatment

The Ozone therapy machine JZ-3000 by Shaanxi Miaokang Medical Technology Co., Ltd. is a cutting-edge device designed to provide advanced ozone therapy for both whole-body and localized treatments. With state-of-the-art technology, the JZ-3000 ensures optimal safety, efficacy, and ease of use, making it ideal for medium and large medical institutions. This device supports various applications, from systemic autohemotherapy to local injections, delivering remarkable results in health management.

Product Features

• Color Touch Screen: The user-friendly interface simplifies the operation with a digital modular design and microcomputer control.
• Ozone Concentration Detection System: Ensures accurate dosing without the need for warm-up time, reducing wait periods and enhancing workflow efficiency.
• Automatic Disinfection: For added safety, the machine self-disinfects the boot pipe before each use.
• Pressure and Concentration Control: Automatically adjusts pipeline pressure and ozone concentration, ensuring precise treatment.

Equipment Parameters

• Voltage: 220V ±10%
• Frequency: 50Hz ±1Hz
• Power Consumption: ≤200VA
• Ozone Output Concentration: 0-70 µg/L (continuously adjustable)
• Oxygen Flow: 0.75 L/min
• Continuous Working Time: ≤4 hours
• Operating Temperature Range: 5°C - 40°C

Working Principle

An Ozone therapy machine operates by leveraging the chemical properties of ozone, a molecule composed of three oxygen atoms (O₃), to provide therapeutic benefits. The fundamental principle behind these machines involves the controlled generation, delivery, and application of ozone for health improvement and treatment purposes.The process begins with the ozone generator, which produces ozone through a method known as corona discharge. This involves passing a high-voltage electrical current through a flow of oxygen gas. The electrical discharge splits the oxygen molecules (O₂) into individual atoms, which then recombine to form ozone.

The machine is designed to regulate the concentration and flow rate of the ozone to ensure it is within safe and effective levels.Once generated, the ozone is channeled through a series of filters and cooling systems to ensure its purity and stability before administration. The filtration system removes any contaminants, while the cooling system maintains the ozone at an optimal temperature to preserve its therapeutic properties.

The machine's control panel allows practitioners to set specific parameters such as ozone concentration, delivery method, and treatment duration. This customization ensures that the therapy can be tailored to the patient's individual needs and the specific condition being treated.The ozone is then administered to the patient using various methods, such as direct injection, insufflation, or external application, depending on the type of treatment being performed. The therapeutic action of ozone is based on its ability to enhance oxygen utilization, stimulate immune responses, and promote healing by increasing cellular metabolism and circulation.

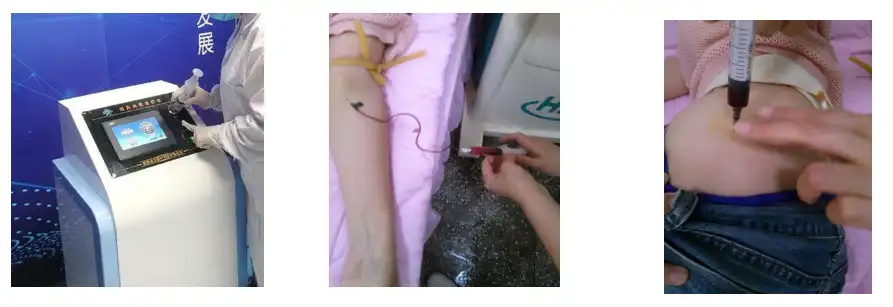

Ozone Therapy Machine Applications

Whole-Body Therapy:

MAHT (Major Autohemotherapy): Venous blood is drawn, mixed with medical ozone, and reinfused, commonly used for immune modulation and detoxification.

Rectal Gas Insufflation: Ozone is introduced rectally for systemic effects, often combined with other treatments.

Small Autohemotherapy: A smaller volume of blood is ozonated and injected into muscle tissue for localized benefits.

Local Treatments:

Intramuscular Injection: Ideal for conditions like muscle inflammation or joint pain, including neck and lumbar disc herniation.

Joint Injections: Ozone therapy can be used for treating osteoarthritis or inflammatory joint conditions.

Aesthetic Applications: Subcutaneous injections can help with cosmetic issues like stretch marks or under-eye bags.

Why Choose Us?

Shaanxi Miaokang Medical Technology Co., Ltd. is a pioneer in medical ozone therapy with over a decade of experience in device manufacturing and innovation. We offer:

• Safety and Reliability: Our equipment adheres to the highest medical standards.
• Comprehensive After-Sales Support: Including training, maintenance, and technical assistance.
• Cost-Effectiveness: Durable products with minimal maintenance needs, providing long-term value.

Certifications

Our Ozone therapy machine is CE-certified, complies with ISO 13485, and has been awarded multiple patents for its innovative features and reliable performance in the medical field.

FAQ

1. What is the recommended ozone concentration for treatments?

Ozone concentration can vary from 20 to 40 µg/ml, depending on the type of treatment and the patient’s condition.

2. Is the machine difficult to operate?

No, the device is equipped with a color touch screen and intuitive interface, making it easy to use for trained medical staff.

3. What are the main benefits of ozone therapy?

Ozone therapy promotes tissue oxygenation, supports the immune system, and accelerates healing by increasing blood circulation.
