Ozone therapy machines
Place of Origin: Shaanxi,China
Model Number: JZ-3000B
Type: Autologous blood therapy
Material: ABS Plastic
Function: Promote blood circulation, kill bacteria, reduce inflammation and pain
Dimention:350mm*490mm*190mm
N.W: 9.9kg
G.W: 13kg
Package Dimention: 620mm*300mm*520mm
Certification: ISO13485
Model Number: JZ-3000B
Type: Autologous blood therapy
Material: ABS Plastic
Function: Promote blood circulation, kill bacteria, reduce inflammation and pain
Dimention:350mm*490mm*190mm
N.W: 9.9kg
G.W: 13kg
Package Dimention: 620mm*300mm*520mm
Certification: ISO13485
Send Inquiry
Product Description
Product Description
Introduction
Ozone therapy has emerged as a promising medical treatment that harnesses the power of ozone gas to treat various health conditions. At Shaanxi Miaokang Medical Technology Co., Ltd., we are proud to offer our state-of-the-art Ozone therapy machines, designed to deliver safe, effective, and reliable treatment solutions. With cutting-edge technology and humanized operation interfaces, our machines are tailored for healthcare professionals and institutions seeking advanced ozone therapy solutions.
Product Features
Our product JZ-3000 comes equipped with several advanced features:
- Color Touch Screen: Intuitive and user-friendly interface for easy operation.
- Ozone Concentration Detection System: Ensures precise control over ozone levels for accurate treatment.
- Automatic Disinfection: Built-in disinfection feature for hygienic and safe operation.
- Pressure and Concentration Regulation: Automatically adjusts for optimal gas flow and pressure settings.
- Quick Startup: No waiting for warm-up; ready for use as soon as powered on.
Equipment Parameters
| Parameter | Specification |
|---|---|
| Voltage | 220V ± 10% |
| Frequency | 50Hz |
| Power Consumption | ≤200VA |
| Ozone Concentration | 0-70 mg/L (Adjustable) |
| Oxygen Flow | 0.75L/min |
| Ozone Output Flow | 0.75L/min |
| Continuous Working Time | ≤4 hours |
| Operating Temperature Range | 5℃-40℃ |
Working Principle
The working principle of the Ozone therapy machines involves a systematic process for generating and utilizing ozone (O₃) for medical treatments. Initially, the machine draws in ambient air or pure oxygen, which is then passed through an ozone generator. This generator employs an electrical discharge or ultraviolet light to split oxygen molecules (O₂) into individual oxygen atoms, which subsequently recombine with other oxygen molecules to form ozone.
Once generated, the ozone is channeled through a controlled delivery system to the patient. The concentration of ozone is carefully regulated to ensure it is within therapeutic levels, minimizing potential risks while maximizing benefits. The therapy can be administered in various forms, such as through intravenous infusion, direct application to the skin, or insufflation into body cavities, depending on the treatment protocol.
The therapeutic effects of ozone are based on its potent oxidative properties, which can help to enhance cellular metabolism, improve circulation, and boost the immune system. By introducing ozone into the body, it is believed to promote healing, reduce inflammation, and combat infections. This approach is employed for a range of conditions, including chronic diseases, wounds, and certain infections, aiming to support and accelerate the body's natural healing processes.
Applications

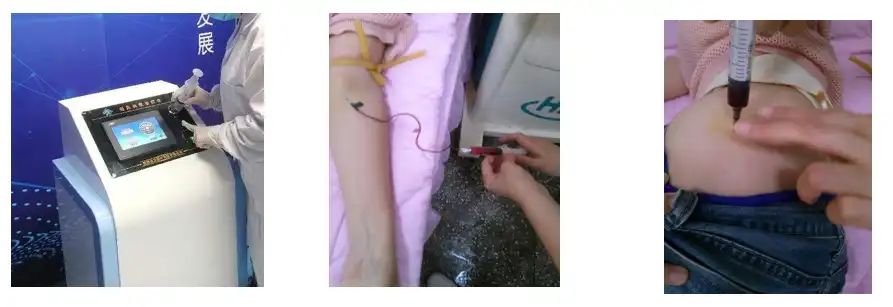

The Ozone therapy machines can be used for both whole-body treatments and local treatments.
- Whole-Body Treatments: MAHT (Major Autohemotherapy), rectal gas injection, and rectal ozone mixture perfusion.
- Local Treatments: Intramuscular, subcutaneous, and articular cavity injections, along with sinus and fistula gas treatments.
Whether it’s addressing chronic pain, improving circulation, or treating infections, our product is versatile enough to handle various therapeutic applications in medical institutions.
Why Choose Us
Shaanxi Miaokang Medical Technology Co., Ltd. stands at the forefront of medical innovation. With over 11 utility model and appearance patents, our products are designed with safety, precision, and user convenience in mind. Additionally, our machines meet stringent international safety and performance standards, offering peace of mind to healthcare providers.
Certifications
We take pride in the numerous certifications and accreditations our company has received, including:
- ISO 13485: International standard for medical device quality management systems.
- CE Certification: European certification ensuring product compliance with health, safety, and environmental protection standards.
- National High-Tech Enterprise: Recognized for our cutting-edge research and development efforts.
FAQ
Q1: Is the machine difficult to operate?
A1: No, the product JZ-3000 features a color touch screen and microcomputer control for intuitive use, making it simple for healthcare professionals to operate.
Q2: How do I ensure the correct ozone concentration for treatments?
A2: Our machine includes an ozone concentration detection system, which automatically regulates the concentration based on your settings.
Q3: Is the device safe for long-term use?
A3: Yes, it has a built-in automatic disinfection feature and is designed to work continuously for up to 4 hours without overheating.
Contact Us
For more information about our Ozone therapy machines or to inquire about purchasing, please contact us at cathy@miaokang.ltd. Let us help you enhance your medical facility with the latest in ozone therapy technology.
