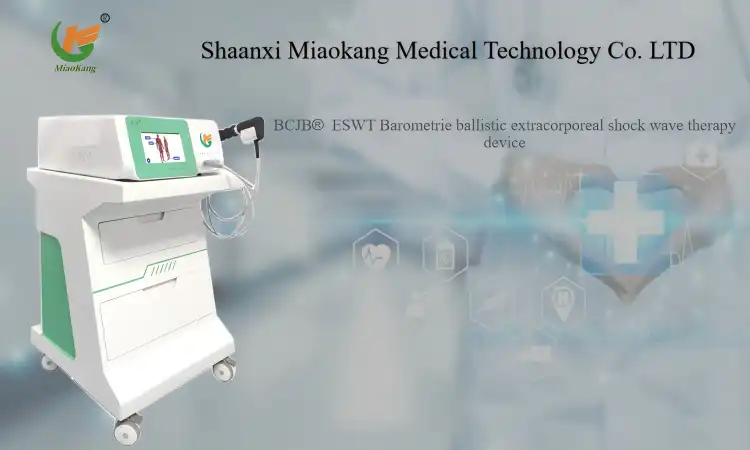

Shockwave therapy medical device

Introduction

The Shockwave Therapy Medical Device is an advanced, non-invasive solution designed to assist in pain management and rehabilitation. This state-of-the-art equipment uses pneumatic ballistic extracorporeal shock waves to provide relief for conditions such as plantar fasciitis, tennis elbow, and shoulder periarthritis. By generating targeted pulses through compressed air, it offers deep tissue therapy, promoting healing and recovery in patients. This device is ideal for use in medical institutions like hospitals, rehabilitation centers, and sports medicine clinics, meeting the clinical needs of both professionals and patients.

Product Features

• Non-invasive pain relief: The shockwave therapy device is designed to treat various musculoskeletal conditions without surgery.
• Adjustable settings: Real-time control of frequency, pressure, and energy density for tailored treatments.
• Portable and versatile: The host unit can be separated from the trolley, providing flexibility in clinical settings.
• Effective for multiple conditions: It aids in treating shoulder periarthritis, tennis elbow, plantar fasciitis, and other chronic pain issues.

Equipment Parameters

• Power Supply: AC 220V 50Hz
• Input Power: 150W
• Fuse: F3.15AL250V
• Protection Level: Class I for electrical shock, Type B
• Working Pressure: 150 kPa to 400 kPa
• Energy Density: 0 mJ to 0.41 mJ/mm²
• Penetration Depth: 0mm to 26mm
• Operating Frequency: 1Hz to 16Hz
• Impact Times: 1000 to 9000 times
• Weight: 15.8 kg (excluding trolley)

Working Principle

The Shockwave therapy medical device works by compacting air through an underlying air blower, which then drives a projectile inside the control handle. The shot effects the treatment head, producing shock waves. These waves infiltrate profound into the tissue, focusing on areas of persistent agony or injury, invigorating blood course, and speeding up the body's normal recuperating process.

Application

This device is versatile and suitable for application in a range of medical departments, such as orthopedics, rehabilitation medicine, sports medicine, and physical therapy. It offers effective treatment for a variety of conditions, including:

• Plantar Fasciitis: Provides relief from the pain and inflammation in the plantar fascia of the foot, promoting healing.
• Shoulder Periarthritis: Aids in reducing pain and inflammation in the shoulder joint, enhancing mobility and function.
• Tennis Elbow: Targets the discomfort associated with lateral epicondylitis, helping to alleviate pain and support recovery.
• Chronic Pain in Muscles and Joints: Addresses persistent pain in muscles and joints, offering therapeutic benefits for long-term discomfort and aiding in the healing process.

This wide range of applications makes the Shockwave therapy medical device an invaluable tool for managing and treating diverse musculoskeletal and soft tissue conditions across different clinical settings.

Why Choose Us?

At Shaanxi Miaokang Medical Technology Co., Ltd, we are dedicated to providing high-quality medical devices that meet clinical rehabilitation needs. Our product stands out due to:

• Advanced Technology: Featuring real-time pressure and frequency control, our device delivers precise treatment.
• Innovative Design: Portable and versatile, allowing for easier integration into clinical settings.
• Reliability: We offer consistent product quality, timely after-sales service, and technical support to ensure customer satisfaction.
• Cost-effective Solutions: Our product is competitively priced without compromising on quality or effectiveness.

Certifications

Our device is manufactured in compliance with international standards, and we have acquired key certifications, including:

• National High-Tech Enterprise Status
• Registered Trademarks and Utility Patents
• Medical Device Registration and Production License

• Our Shock Wave Therapy Device complies with relevant industry standards and boasts 11 utility model and appearance patents, 8 software works, 7 registered trademarks, and 3 medical product registration and production licenses.Obtained ISO13485,ISO9001.

FAQ

Q1: How often should shockwave therapy be administered?
A1: Typically,Shockwave therapy medical device is administered 2 to 5 times per cycle, with 2 to 4 days between each session.

Q2: Is the device safe for patients?
A2: Yes, the device is classified as a Class I medical device, ensuring a high level of safety for patients under professional supervision.

Q3: Can this device be used in multiple departments?
A3: Absolutely. The device is versatile and can be used in departments like orthopedics, pain management, and sports medicine.

Contact Us

If you're looking to enhance your facility’s rehabilitation services, please don’t hesitate to reach out. Contact us at cathy@miaokang.ltd for more information or to schedule a demonstration.

By investing in Shaanxi Miaokang Medical Technology Co., Ltd's Shockwave Therapy Medical Device, you are ensuring top-tier rehabilitation solutions for your patients while optimizing clinical outcomes.
