Extracorporeal shockwave therapy device
Place of Origin: Shaanxi,China
Model Number: MKYLB-100
Type: Rehabilitative Devices
Material:ABS Plastic
Function: Treat various chronic pain
Dimention:500mm(L)*442mm(W)*193mm(H)
N.W：15.8kg
G.W: 18.8kg
Package Dimention: 620mm*610mm*320mm
Certification: ISO9001, ISO13485
Model Number: MKYLB-100
Type: Rehabilitative Devices
Material:ABS Plastic
Function: Treat various chronic pain
Dimention:500mm(L)*442mm(W)*193mm(H)
N.W：15.8kg
G.W: 18.8kg
Package Dimention: 620mm*610mm*320mm
Certification: ISO9001, ISO13485
Send Inquiry
Product Description
Product Description

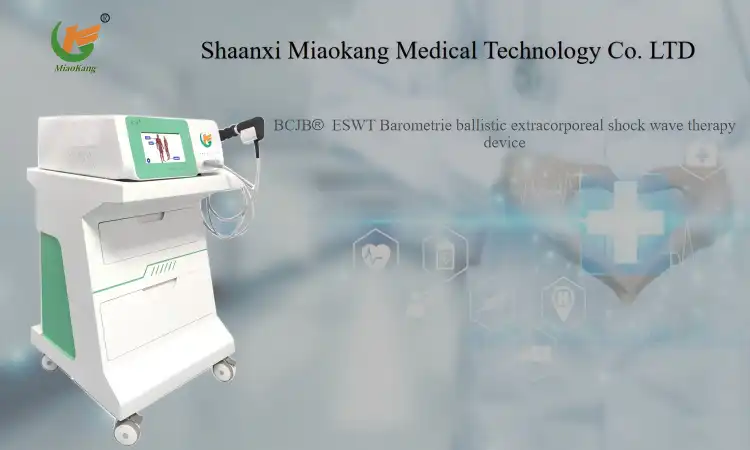

Introduction
Presenting the progressive pneumatic ballistic extracorporeal shockwave therapy device from Shaanxi Miaokang Clinical Innovation Co., Ltd., a spearheading development that upsets harmless torment the board and restoration. This cutting-edge gadget use the gigantic capability of packed air innovation to convey exact, high-energy shockwaves straightforwardly to designated tissues, offering a protected and viable answer for a bunch of outer muscle issues.
Product Features
Our extracorporeal shockwave therapy device has many features：
Modular Options: Available as a standalone host or with an optional trolley for enhanced mobility within clinical settings.

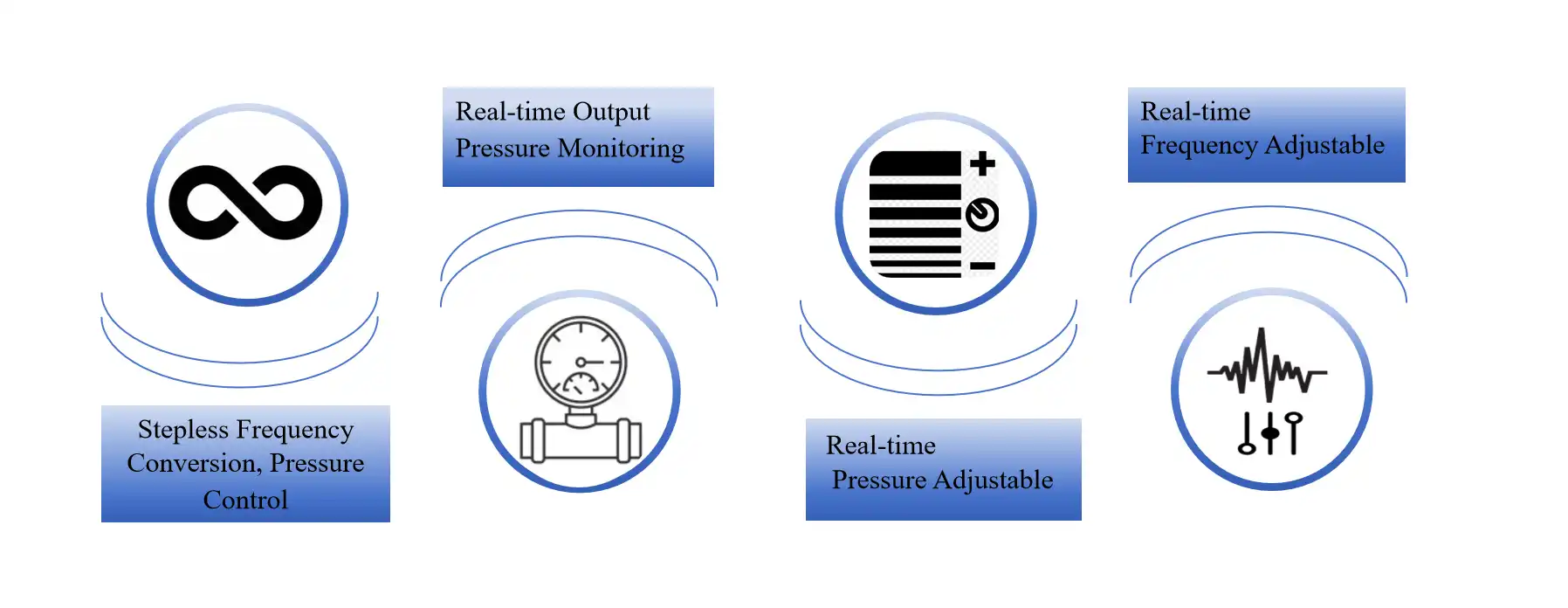

Advanced Technology: Equipped with stepless frequency conversion for precise control, real-time pressure monitoring, and adjustable parameters to suit diverse treatment requirements.
Compact Design: Weighing only 15.8 kg, our device is portable and easy to handle, making it an ideal choice for various medical environments.
Equipment Parameters
Electrical Safety: Classified as Class I with Type B protection, ensuring safety during operation.
Technical Specifications:
Power supply: AC220V, 50Hz
Input power: 150W
Working pressure: 150kPa to 400kPa
Energy density: 0mJ to 0.41mJ/m²
Penetration depth: up to 26mm
Operating frequency: 1Hz to 16Hz
Treatment cycles: 2 to 4 days, with 2-5 sessions recommended
Working Principle
The ESWT device utilizes a high-efficiency air compressor to generate kinetic energy that propels a bullet within the control handle. This action creates a pulse that impacts the treatment head, producing shockwaves. These shockwaves penetrate the targeted tissue, promoting increased blood flow and stimulating the body's natural healing processes.
Application
Our extracorporeal shockwave therapy device is effective in treating conditions such as plantar fasciitis, tennis elbow, and shoulder periarthritis. It is highly beneficial in departments including Orthopedics, Rehabilitation Medicine, and Sports Medicine, making it a versatile tool in both acute and chronic pain management.
Why Choose Us
Shaanxi Miaokang Medical Technology is renowned for its commitment to innovation and quality. As a holder of multiple patents and a recognized leader in medical technology, we ensure that our devices are not only effective but also meet the highest standards of safety and performance.
Certifications
Our Shock Wave Therapy Device complies with relevant industry standards and boasts 11 utility model and appearance patents, 8 software works, 7 registered trademarks, and 3 medical product registration and production licenses.Obtained ISO13485,ISO9001.
FAQ
What are the primary uses of this device?
It is used for treating various musculoskeletal conditions, providing pain relief and aiding in the recovery process.
Is the device difficult to operate?
No, it features an intuitive design with adjustable settings to cater to different treatment needs, making it user-friendly for medical professionals.
Contact Us
To learn more about our extracorporeal shockwave therapy device or to arrange a demonstration, please contact us at cathy@miaokang.ltd. Our dedicated team is ready to provide you with all the necessary information to integrate this technology into your practice.
